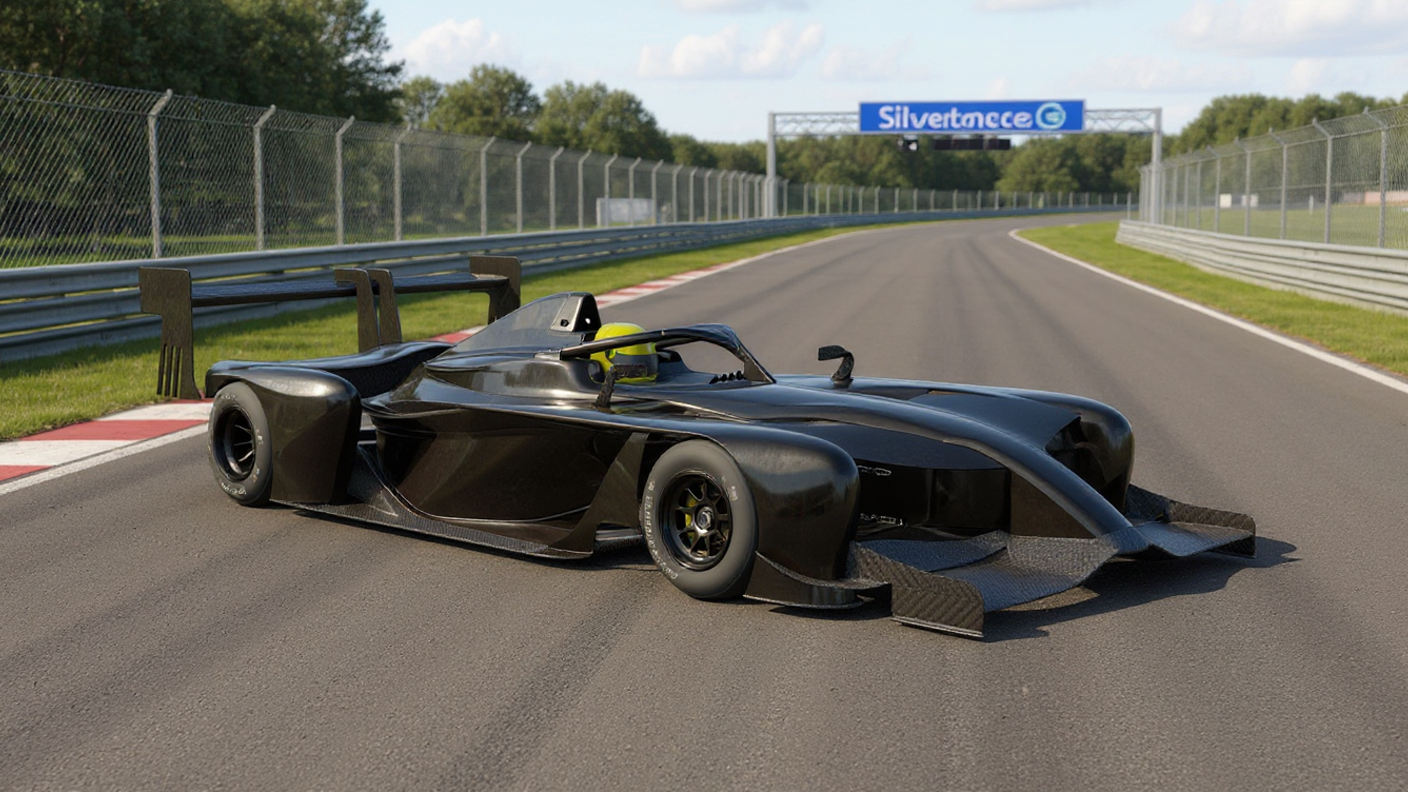

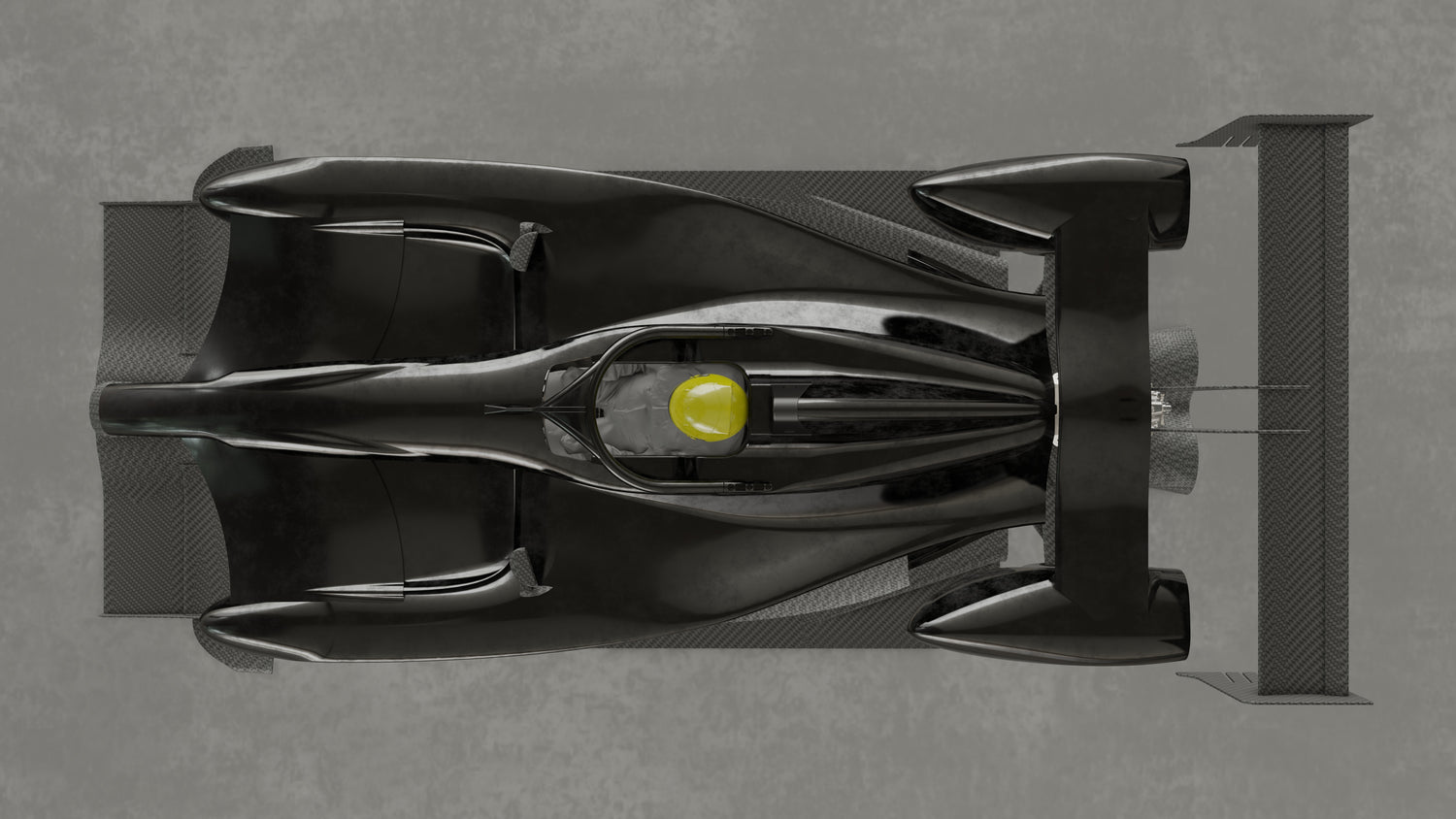

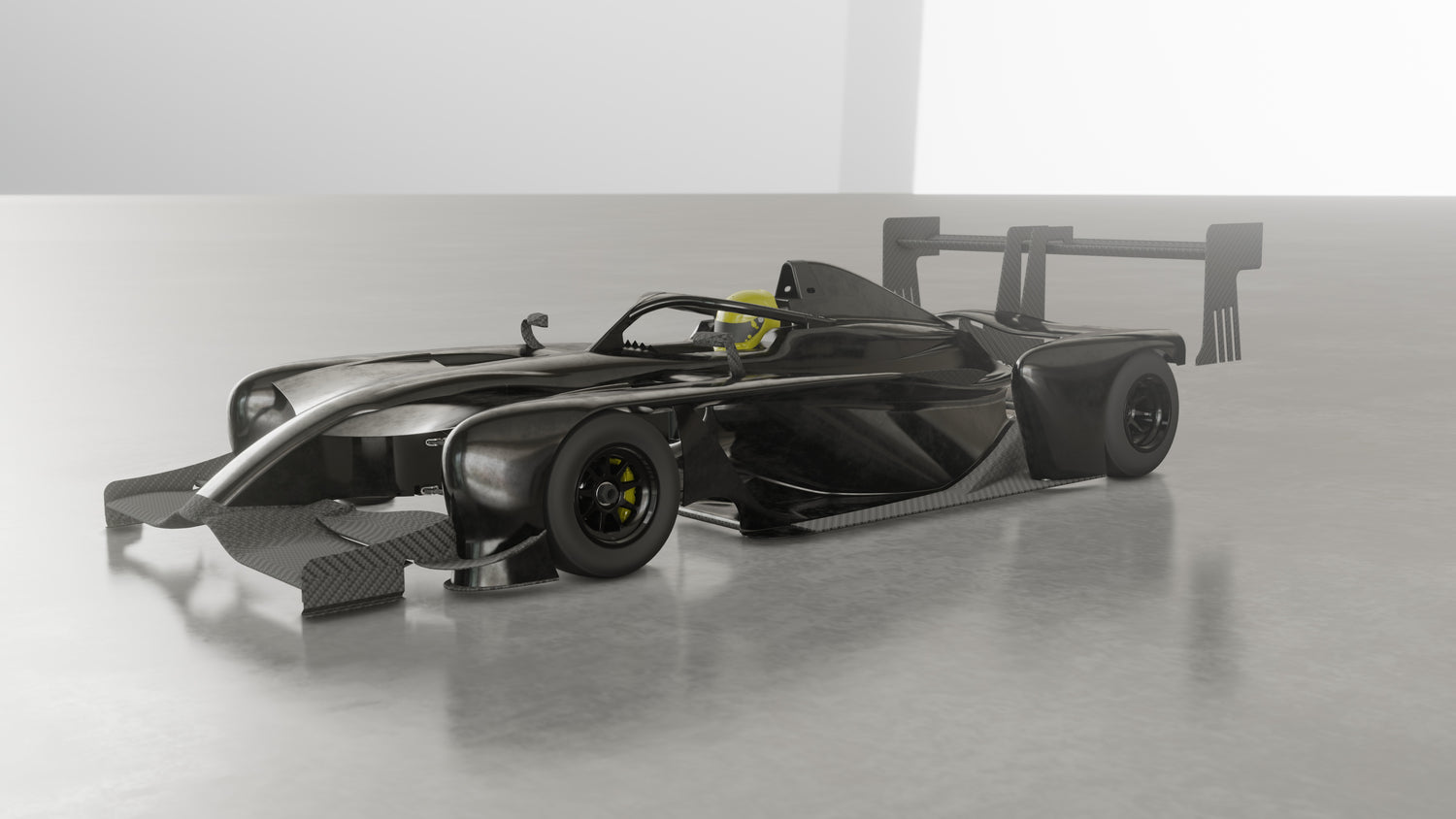

RF520.P

Van Diemen RF is proud to launch its first track day car to the market. After years in development, the RF520 is expected to disrupt the track day market with superior performance and safety standards.

Extensive CFD has been carried out with the car producing over 22,000 Newtons of downforce @ 175mph which will see a new bench mark set in this sector for performance. The RF520 will be 19 seconds faster around Silverstone than Radicals SR10.

POA

Specifications

  • ENGINE

    •2.3L Ford EcoBoost tuned by MOUNTUNE

    •Power 520bhp

    •Torque 700Nm

    •912 bhp/tonne

    •ECU

    •Stainless Steel Exhaust

    POWERTRAIN

    •Six speed (plus 1 R) sequential

    •Limited slip differential

    •Pneumatic Gear change

    •Bespokeadaptor

    CHASSIS

    •Full Carbon Fibre designed to F3 FIA 2019 regulations

    •Steel HALO

    •Fuel tank circa 70L

    BODY

    •Carbon front, rear lower and upper wings

    •Carbon floor

    •Glass Fabric engine Cover, fender, side pods

    SUSPENSION

    •Double Front and Rear Wishbone

    •Push Rod and Rockers

    •Antiroll Bars Front and Rear

    •2 way adjustable Quantum Damper

    •36mm spring

    •Upright and Hubs

    •Single Nut, Large thread

  • BRAKING

    •AP Callipers

    •Front CP 9444 4/5)Steel disc 280mm x 21mm

    •Rear CP 9445(4/5) Steel disc 280mm x21mm

    •Pads (manufacture TBC)

    COCKPIT, DATA & ELECTRONICS

    •Aim SW4 Formula Steering Wheel with integral LCD display, paddle shift and multiple on-wheel switching

    •Aim data system

    •Sensors including GPS, Water Temperature, Oil Temperature, Oil Pressure, Fuel Pressure, Revs

    •Multiple engine maps

    •Standard wiring loom

    SAFETY

    •Steel HALO

    •Head rest protection

    •Side impact structure

    •FIA foam filled fuel cell

    •FIA fire extinguisher, electronic activation

    •FIA collapsible steering column

    WHEELS & TYRES

    •OZ Magnesium centre lock rims

    •Front 10” x 13” (tyre size 250/570/R13)

    •Rear13” x 13” (tyre size 300/600R13)

    •Tyres not included in sale

    DIMENSIONS

    •Length4850mm

    •Width2000mm

    •Height1020mm

    •WeightTBC
