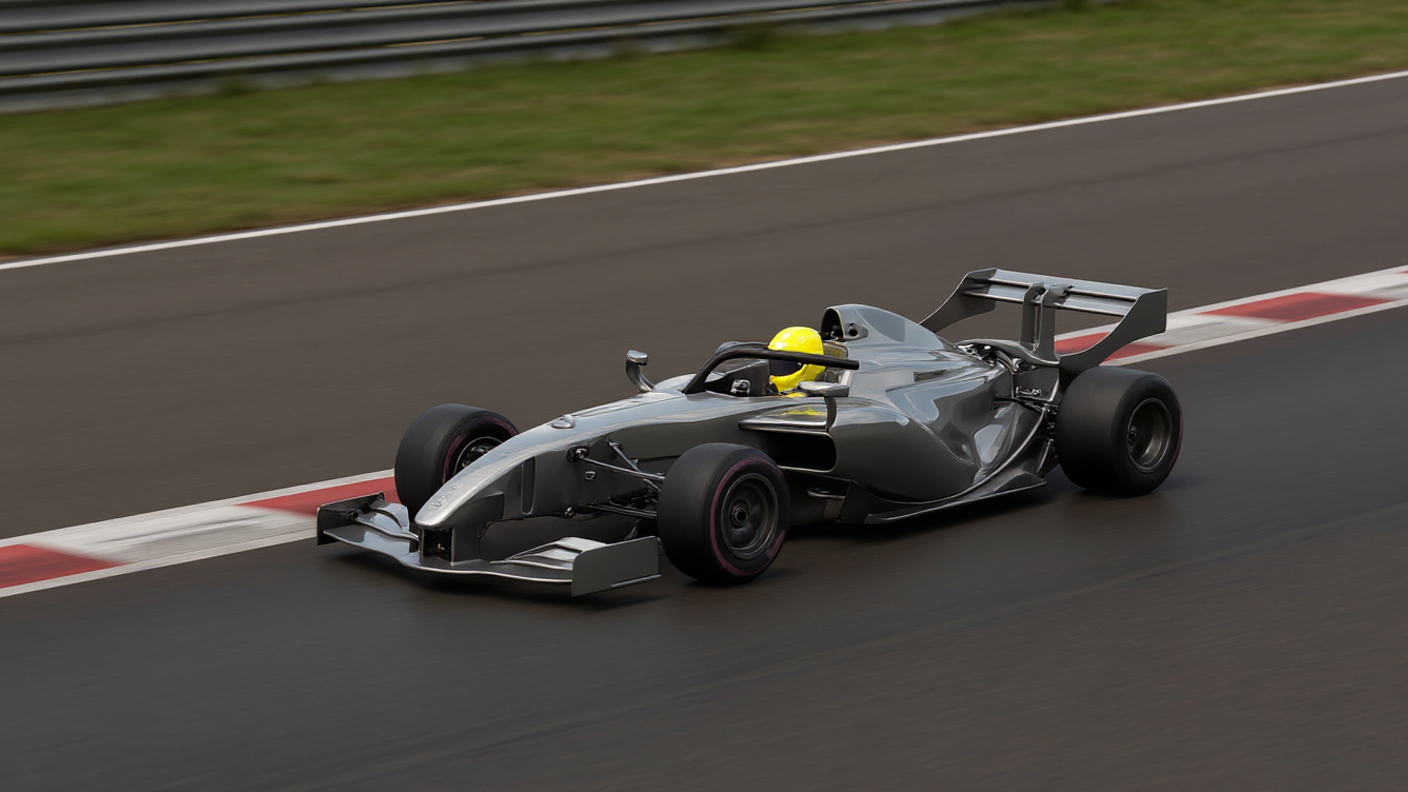

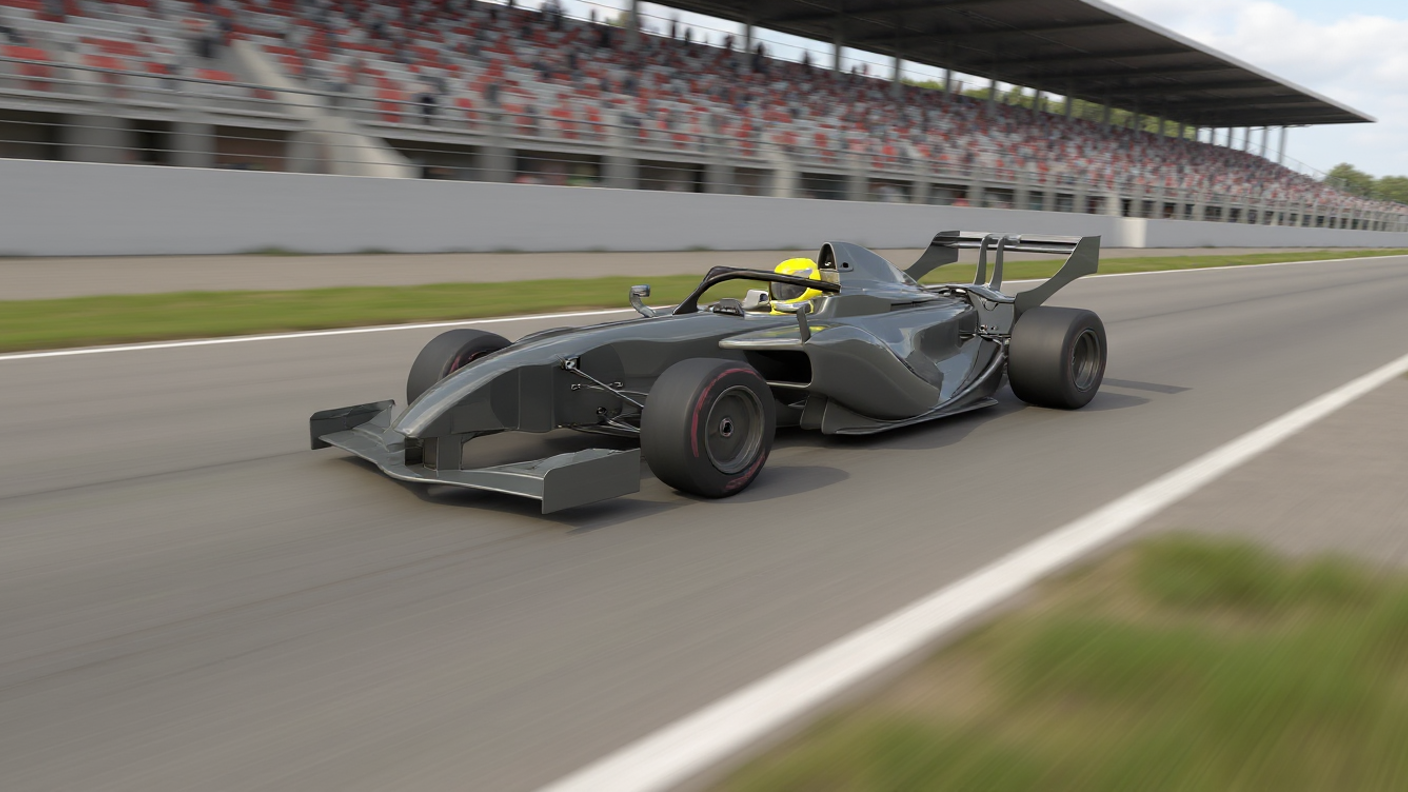

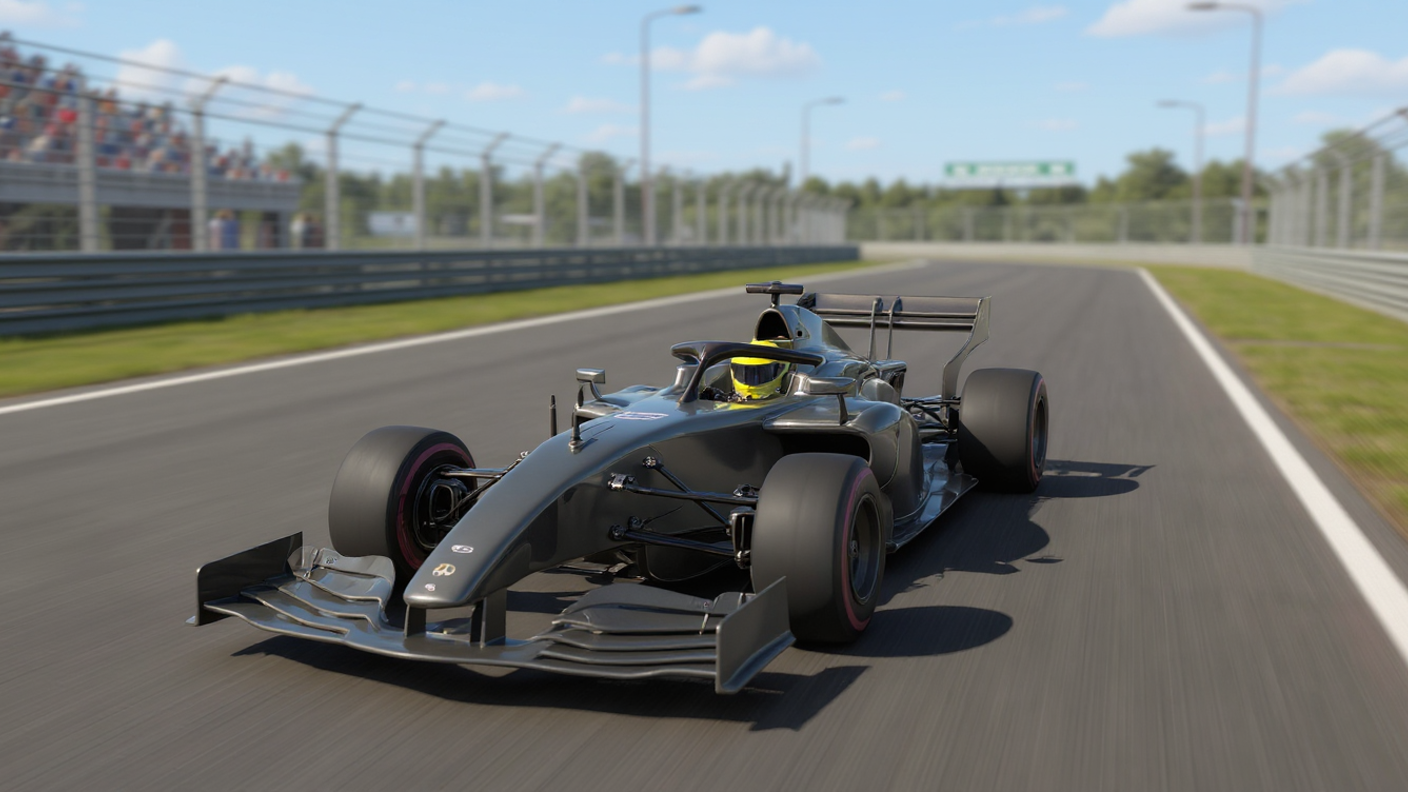

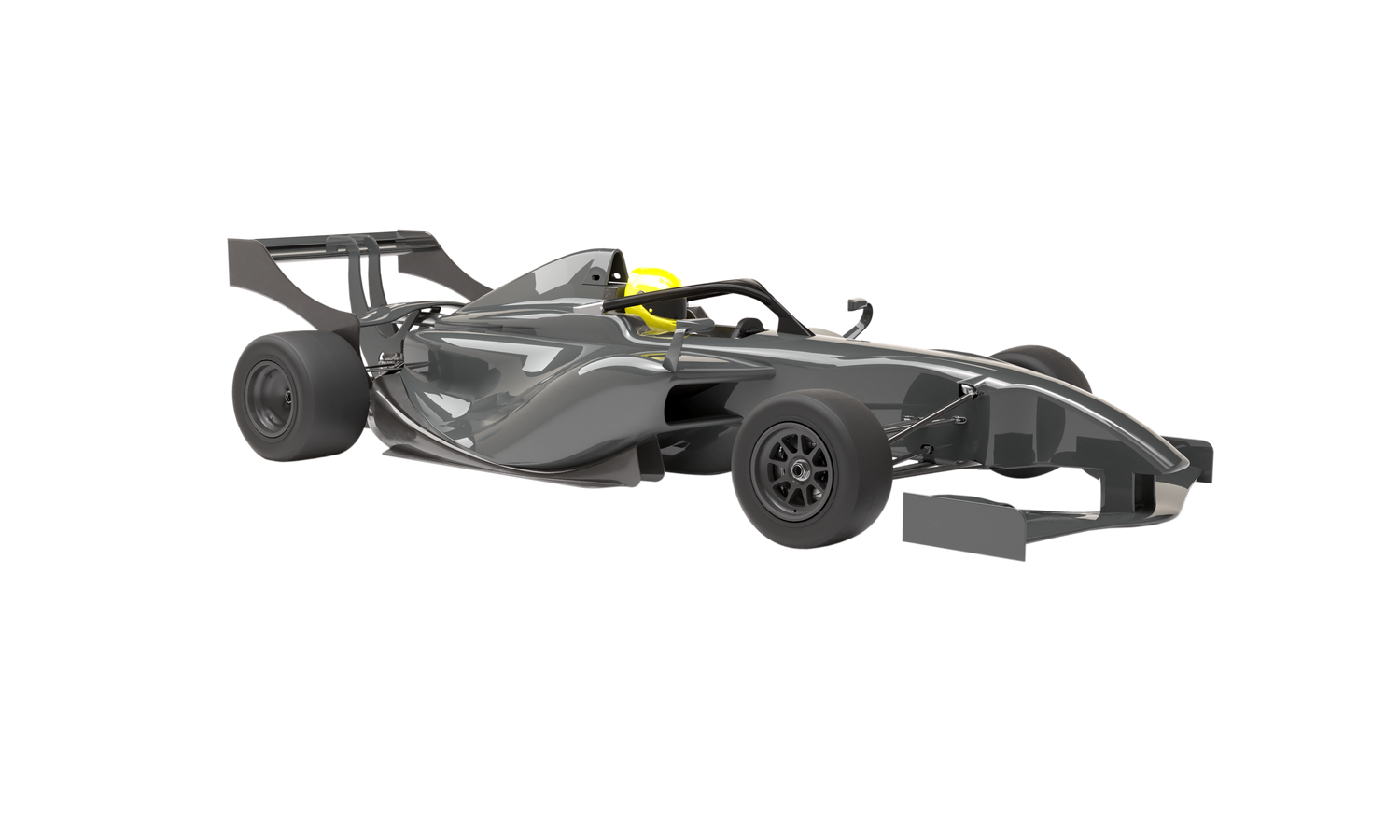

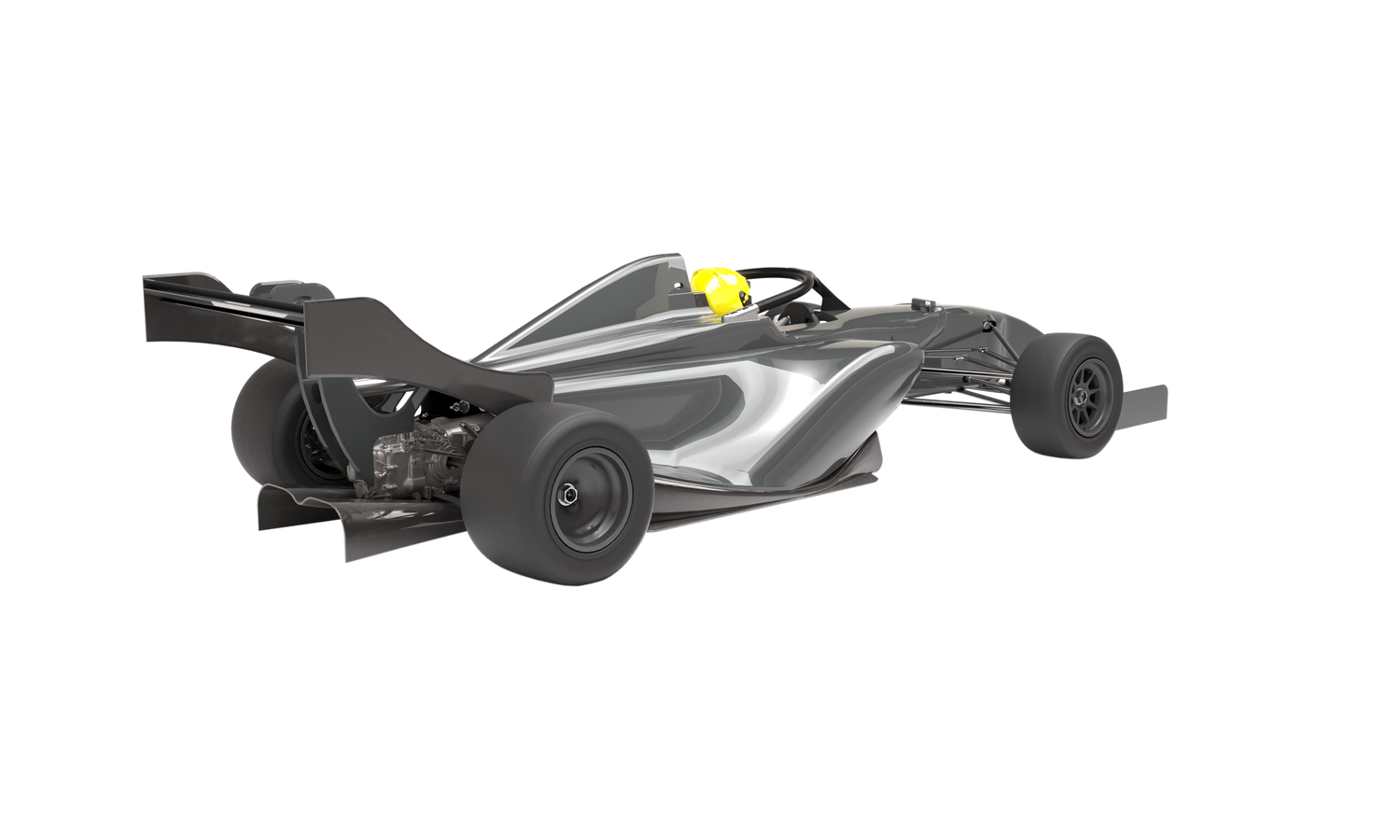

RF520.F

The RF520.F is the first championship car that benefits from the Van Diemen manufacturing pedigree and innovative race design.

This exciting new racing design uses the advanced Ford Ecoboost 520 bhp engine for ultimate performance.

POA

Specifications

  • ENGINE

    •2.3L Ford EcoBoost tuned by MOUNTUNE

    •Power 520 bhp

    •Torque 600 Nm

    •928 bhp/tonne

    •Stainless Steel Exhaust

    POWERTRAIN

    •Six speed gearbox

    •Limited slip differential

    •Pneumatic Gear change

    •Bespoke adaptor

    CHASSIS

    •Full Carbon Fibre complies and designed to F3 FIA 2019 regulations

    •HALO - Steel or Titanium

    •Fuel tank circa 70L

    BODY

    •Carbon front, rear lower and upper wings

    •Carbon floor

    •Fibre glass option on the engine cover, fender, side pods

    SUSPENSION

    •Double Front and Rear Wishbone

    •Push Rod and Rockers

    •Antiroll Bars Front and Rear

    •Quantum Dampers

    •36mm spring

    •Upright and Hubs

    •Single Nut, Large thread

  • BRAKING

    •AP Callipers

    •Front CP 9444 (4/5)Steel disc 280mm x 21mm

    •Rear CP 9445(4/5) Steel disc 280mm x 21mm

    •AP Trunnion Balance Bar

    COCKPIT, DATA & ELECTRONICS

    •Aim SW4 Formula Steering Wheel with integral LCD display, paddle shift and multiple on-wheel switching

    •Aim data system

    •Sensors including GPS, Water Temperature, Oil Temperature, Oil Pressure, Fuel Pressure, Revs

    •Multiple engine maps

    •Standard wiring loom

    SAFETY

    •HALO

    •Head rest protection

    •Side impact structure

    •FIA foam filled fuel cell

    •FIA fire extinguisher, electronic activation

    •FIA collapsible steering column

    WHEELS & TYRES

    •Magnesium centre lock rims

    •Front 10” x 18"

    •Rear13” x 18”

    DIMENSIONS (circa)

    •Length4580mm

    •Width2000mm

    •Height1020mm

    •WeightTBC (est. 565kg)
